Industrial Crusher

Waste processing equipment, plastic cutting machine

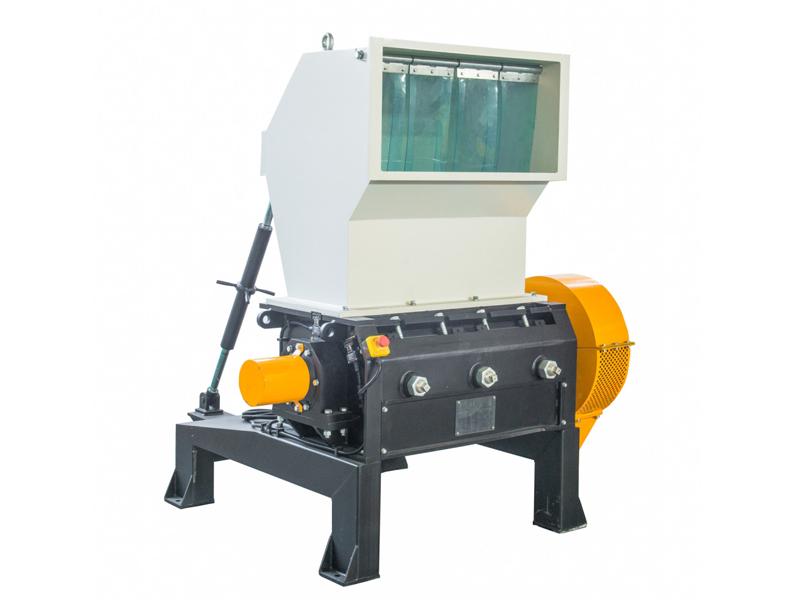

SOYU’s crusher is designed to further crush particles that have already been pre-shredded by industrial shredders. The crusher is mainly used in the plastic industry and features a discharge particle size of 10-12mm. The overall welded steel structure satisfies the strictest size reduction requirements. The “V” rotor cutting technology significantly improves the processing efficiency and reduces dust and powder generation.

Differing from standard crushers, a large selection of rotors and hoppers with different structures are available to fit your material and crushing demands. A mute device, material discharge system, abrasion-resistant protection device and surface-hardening treated rotor are optional upon request.

• The crusher is welded using superior reinforced steel plates, featuring a compact and robust structure, high durability and stability.
• Blades are made from CrMoV abrasion-resistant alloy steel.
• The split machine design makes blade replacement and maintenance easy.
• Replaceable abrasion-resistant liners are mounted on the rotor double sidewalls.
• High performance bearing coefficient: The outboard bearing effectively prevents dust from entering the bearing and reduce its damage rate.
• Screen units with a variety of structures and hole diameters are available to choose from. Applicable to a broad range of applications.
• The hopper features an APO function to ensure operator safety. A motor drive or hydraulic drive hopper opening method can be chosen for easy maintenance.

Different shafts are suitable for crushing different materials, with the following 3 primary types:

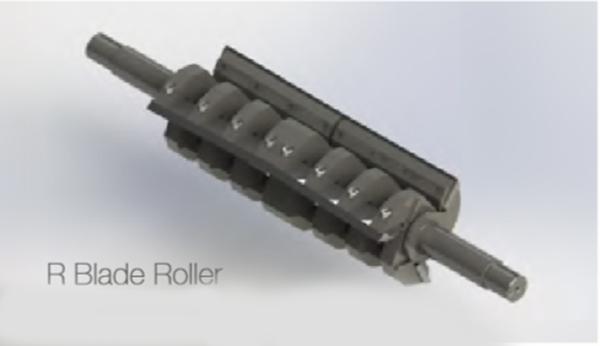

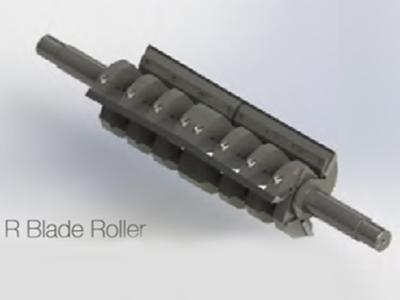

R shaft:The front-mounted blade design withstands large impacts. Only two cutting points exist between the shaft and each row of fixed blades. The R shaft is ideal for crushing harder tubes, thicker sheets and objects with a thick wall.

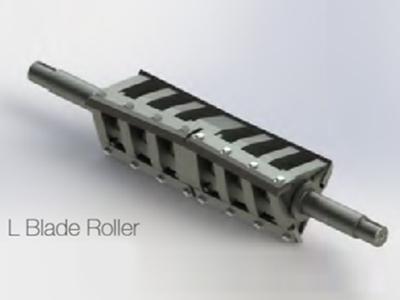

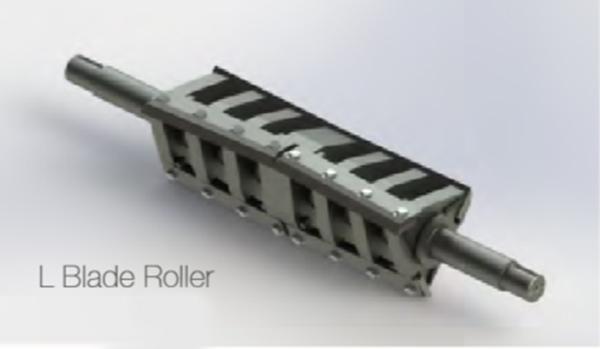

L shaft: the spacing between blades is bigger and the materials can be involved into the rotor blades, allowing the shredder to quickly catch and crush the materials. The L shaft is suitable for processing bottles and films.

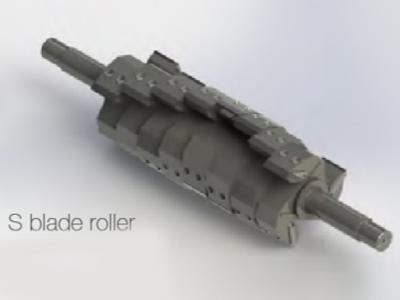

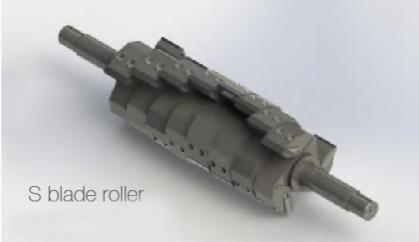

S shaft: solid cutter blade can prevent materials from falling into the rotor blades. Larger cutting impacts can be withstood. The S shaft shredder is appropriate for crushing super-hard materials like thick walled tubes and thick plates.
