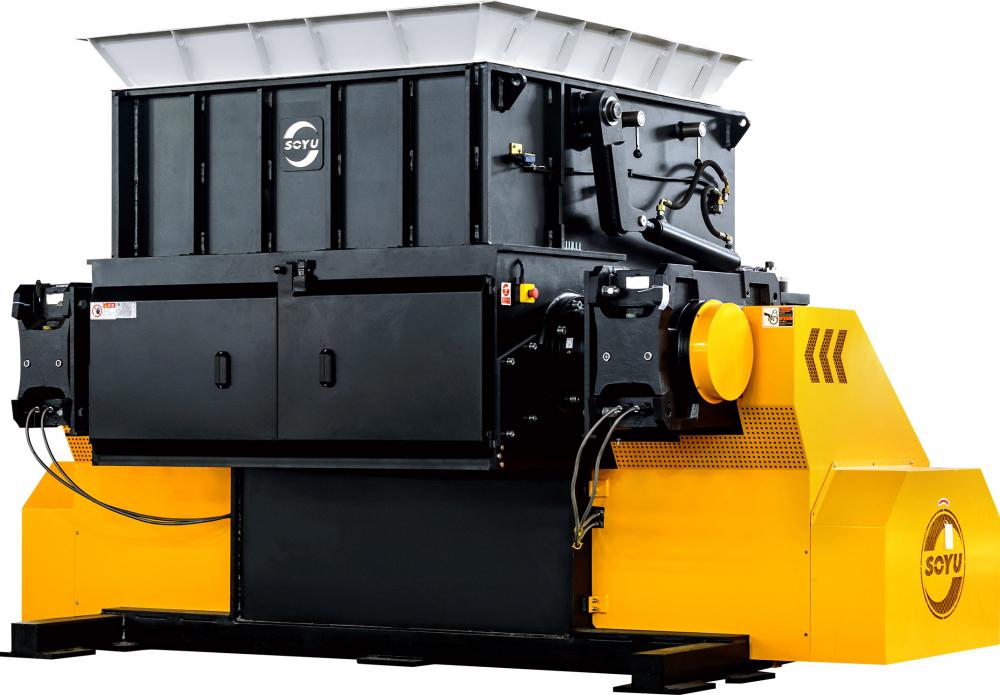

SRB Series Single Shaft Shredder

SRB Series Single Shaft Shredder

Industrial waste recycling equipment, plastic shredding machine

The SRB series single shaft shredder is ideal for size reduction of materials such as plastic, film, glass fiber, household waste and more. The special rotor blade arrangement ensures an optimal grinding efficiency and continuous, stable output. Compared to similar products available on the market today, SOYU’s single shaft shredders feature a higher reliability, higher productivity, lower energy consumption, easier operation and easier maintenance. The intelligent electric control system provides a higher degree of safety.

Features

Hydraulic maintenance flap gate: easy removal of foreign objects and simple cutter adjustment and maintenance
Interior hydraulic processing arm: auto control and stable material feeding by pushing it into the shredding rotor. Compact design, higher feeding efficiency, non-contact rails to reduce abrasion.
Rotors axial adjustment design: easy installation for bearing and reduction gears. Higher component replacement efficiency. Higher blade spacing adjustment precision.
Hydraulic coupling: A hydraulic coupler is used to ensure the main motor works stably and provides overload protection.

Parameters

Model	SRB1400	SRB1600	SRB2100
Main shaft speed(rpm)	73	73	73
Ram travel(mm)	530	530	530
Rotor diameter(mm)	Φ480	Φ480	Φ480

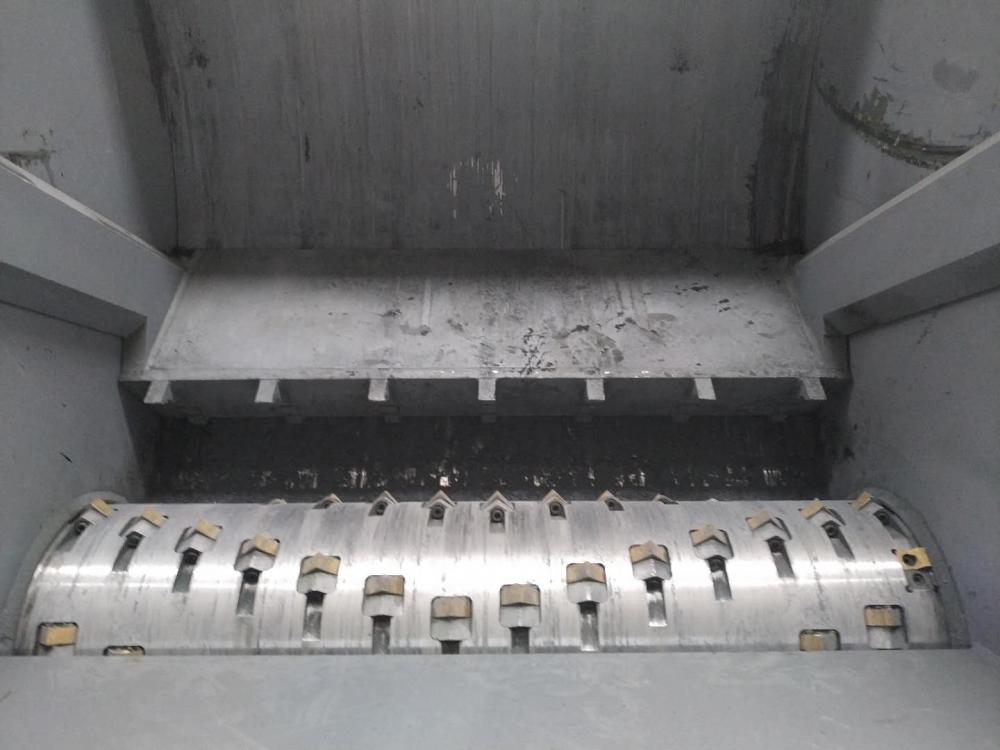

Number of rotor blades(pcs)	80	94	122
Number of fixed blades(pcs)	10	12	16
Discharge height(mm)	792	792	792

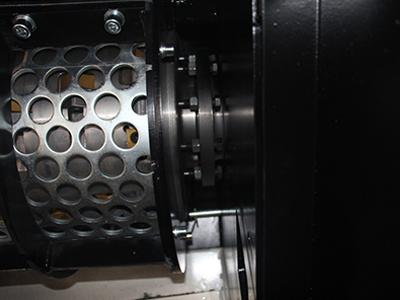

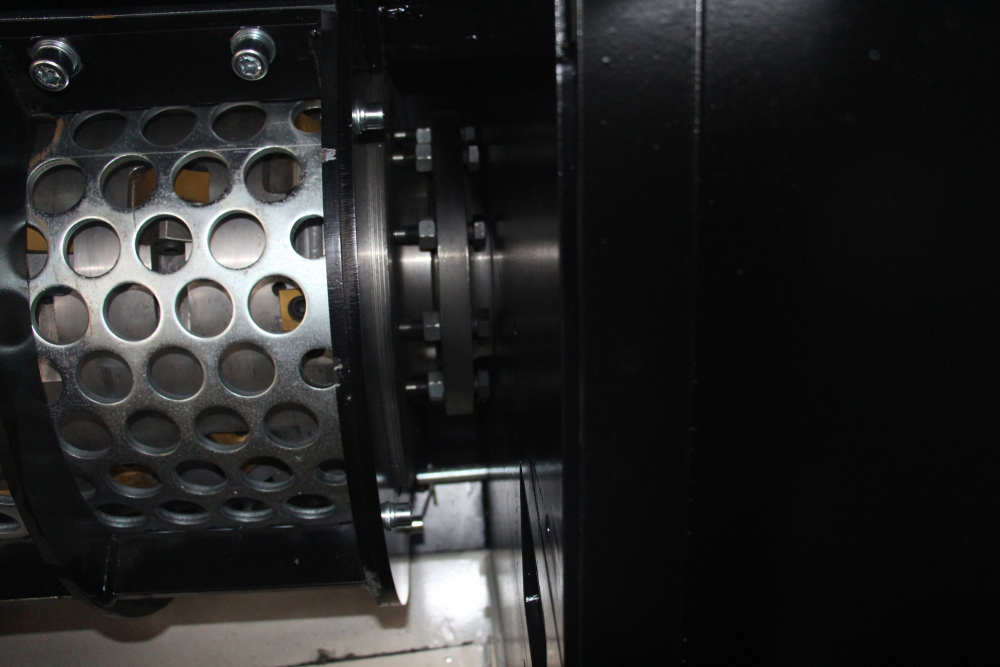

Screen holes diameter(mm)	40	40	40
Motor power(kw)	75~90	2x55~2x75	2x75~2x90
Hydraulic power(kw)	5.5	7.5	7.5
Cutting chamber dimensions(mm)	1362x1640	1593x1640	2055x1640
Overall dimensions(LxWxH)(mm)	2190x2930x2442	2190x4100x2442	2190x4900x2442
Weight(kg)	Approx 7300~7500	Approx 9455~9600	Approx 12000~12500

Request a Quote

Brief

SOYU provides a wide selection of industrial shredders and crushers to satisfy your material size reduction requirements, which feature stable performance, high production efficiency and easy maintenance. We pay attention to every detail of the machine to help you improve productivity, save energy and maximize economic benefits. In addition to standard industrial shredder and crushers, customized size reduction machines can also be offered according to your material shredding requirements. A variety of screens and rotors are selectable to achieve the best processing performance.
